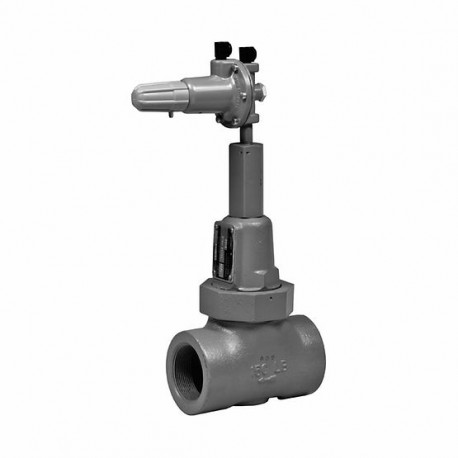

Fisher™ Type 1805P Pilot-Operated Relief Valve

1805 Series relief valves are designed for use in farm tap applications where a relief valve is needed between the first-stage and second-stage regulators.1805 Series relief valves are suitable for natural gas,air, propane, or any medium compatible with the internal valve parts.Relief pressures range from 5 to 125 psig / 0,34 to 8,6 bar. Maximum pressure, including buildup, is 150 psig / 10,3 bar

Fisher 289 Series relief valves are spring-loaded throttling relief valves used as downstream pressure regulators to protect the system from overpressure. A smooth throttling action minimizes pressure surges in the system during relief operation.

Type 630R is a general relief valve available in NPS 1 & 2 / DN 25 & 50 body sizes for compressor stations, refineries and similar plants requiring backpressure gas regulation settings up to 250psi/7,2bar. Available in high & low pressure constructions. Low pressure units have larger diaphragm areas to provide accurate control in low pressure settings.

Fisher Type H120 direct-operated relief valve has a preset and pinned spring retainer. The inlet pressure registers directly on a spring-opposed poppet assembly, which includes a Nitrile (NBR) disk. When the inlet pressure increases above the spring setting, the poppet and disk assembly is pushed away from the metal seat.
